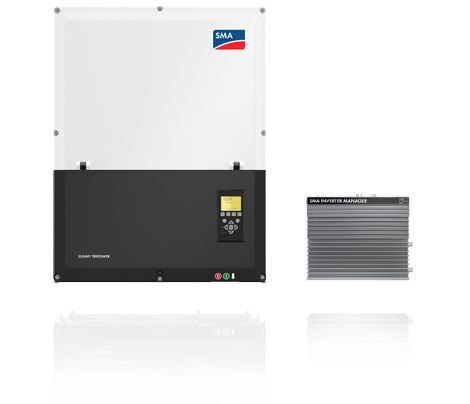

SUNNY TRIPOWER 60 Japan

The easy scalable solution for large PV systems
UP TO 150% DC/AC RATIO FOR MAXIMUM YIELD


SUNNY TRIPOWER 60 is an innovative system solution which combines the advantages of decentralized PV system layouts with the beneficial features of the central inverter concept. With the SUNNY TRIPOWER 60 as the inverter component, this system approach ensures high performance and maximum design flexibility for the entire PV system – either rooftop or ground-mounted.

  • Highest yield and ultimate flexibility
  • Fast commissioning and great efficiency
  • Central control via Inverter Manager
  • Maximum security
  • 100 % peace of mind with SMA

Efficient

Reliable

Flexible

Innovative

• Maximum efficiency of 98.8%

• Superior power density:

60 kW with only 75 kg of weight

• Superior PV system availability with 60-kW units

• SMA Inverter Manager as central control unit

• DC input voltage of up to 1000 V

• Flexible DC solutions with custo- mer-specific PV array combiner boxes

• Cutting-edge system design

Technical data

Sunny Tripower 60

Input (dC)

Rated DC power

61240 W

Max. PV array power

90000 Wp

Max. input voltage

1000 V

MPP voltage range (at 420 Vac / 440 Vac)

598 V to 800 V / 627 V to 800 V

Min. input voltage (at 420 Vac / 440 Vac)

593 V / 622 V

Start input voltage (at 420 Vac / 440 Vac)

628 V / 660 V

Max. input current / max. short-circuit current

110 A / 150 A

Number of independent MPP inputs/strings per MPP input

1/2 (split up in external combiner box)

Rated DC input voltage (at 420 Vac / 440 Vac)

660 V / 690 V

Output (aC)

Rated power at nominal voltage

60000 W

Max. apparent AC power

60000 VA

Max. reactive power

60000 var

Nominal AC voltage

3 / PE, 420 V (50 Hz) / 440 V (60 Hz)

AC voltage range

360 V to 530 V

AC power frequency/range

50 Hz / 44 Hz to 55 Hz

60 Hz / 54 Hz to 65 Hz

Rated power frequency/rated grid voltage

50 Hz / 420 V

Max. output current (at 420 Vac / 440 Vac) / rated output current

82.5 A / 79 A / 82.5 A

Power factor at rated power / displacement power factor adjustable

1 / 0 overexcited to 0 underexcited

THD

< 3 %

Feed-in phases/connection phases

3 / 3

Efficiency

Max. efficiency / Euro-eta / according to JIS C 8961

98.8 % / 98.3 % / 98.0 %

Protective devices

Input-side disconnection point

●

Ground fault monitoring/grid monitoring

● / ●

Integrable DC surge arrester / AC surge arrester

Type II / type II + III (combined)

AC short-circuit current capability / galvanically isolated

● / —

All-pole sensitive residual-current monitoring unit

●

Protection class (as per IEC 62109-1) / overvoltage category (as per IEC 62109-1)

I / AC: III; DC: II

General data

Dimensions (W/H/D)

570 / 740 / 306 mm (22.4 / 29.1 / 12 inches)

Weight

75 kg (165.3 lb)

Operating temperature range

‒25°C to +60°C (‒13°F to +140°F)

Noise emission, typical

58 dB(A)

Self-consumption (at night)

< 3 W

Topology / cooling concept

Transformerless / active

Degree of protection (according to IEC 60529 / UL 50E)

IP65 / NEMA 3R

Climatic category (as per IEC 60721-3-4)

4K4H/4Z4/4B2/4S3/4M2/4C2

Max. permissible value for relative humidity (non-condensing)

95 %

Features / function / accessories

DC connection / AC connection

Screw terminal / screw terminal

Display

Graphical

Data interface

SunSpec Modbus TCP (via external SMA Inverter Manager)

Off-grid capable / PV-diesel capable

— / ●

Utility Requirements

FRT

●

Manual Restart

●

Warranty: 5/10/15/20 years

● / ○ / ○ / ○





Type designation

STP 60-JP-10
